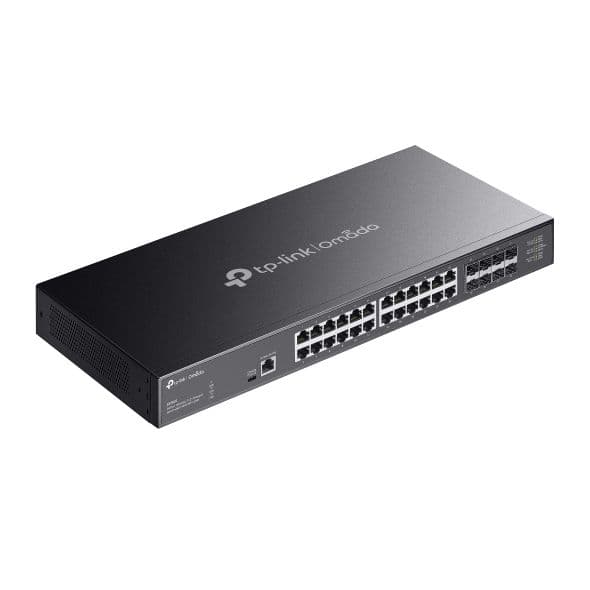

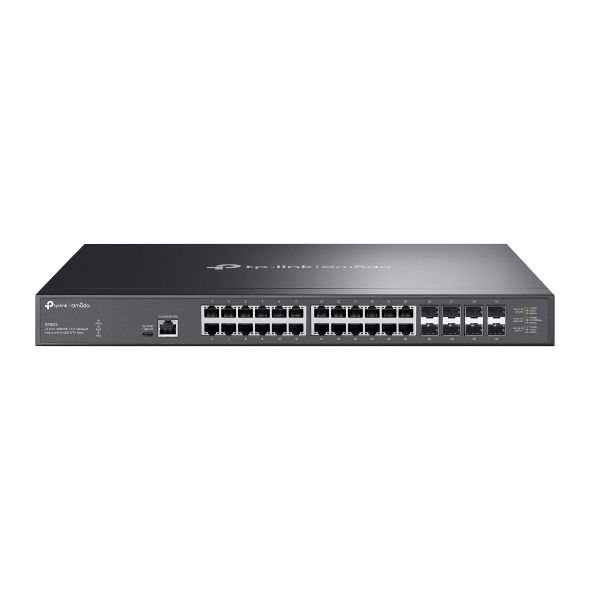

Omada SX3832
Omada 24-Port 10GBASE-T L2+ Managed Switch mit 8 10GE SFP+ Slots
24× 1/2.5/5/10 Gbit/s RJ45-Ports
8× 1/10 Gbit/s SFP+-Slots
640 Gbit/s Switching-Kapazität
Zentrale Verwaltung über die Weboberfläche oder die Omada App†
Standalone-Verwaltung über Web, CLI, SNMP und RMON
Statisches Routing leitet internen Datenverkehr für höhere Effizienz weiter
VLAN, ACL, QoS, IGMP Snooping, OAM und DDM
ERPS unterstützt schnellen Schutz und schnelle Wiederherstellung in einer Ringtopologie
Robustes Metallgehäuse und rackmontierbares Design
Highlights
24× 1/2.5/5/10 Gbit/s RJ45-Ports
8× 10 Gbit/s SFP+-Slots
Zentrale Verwaltung
Omada App
Zero-Touch Provisioning
Ethernet Ring Protection Switching
Statisches Routing
Datenverkehrs-Trennung
Leistung für 10G und Multi-Gig-Geräte
Der SX3832 entfesselt maximale Bandbreite für anspruchsvolle Umgebungen mit 10G Wi‑Fi 7/6 Access Points, Gaming-Computern, NAS/Servern, 4K-Video, Workstations und 10G Netzwerkschnittstellenkarten.

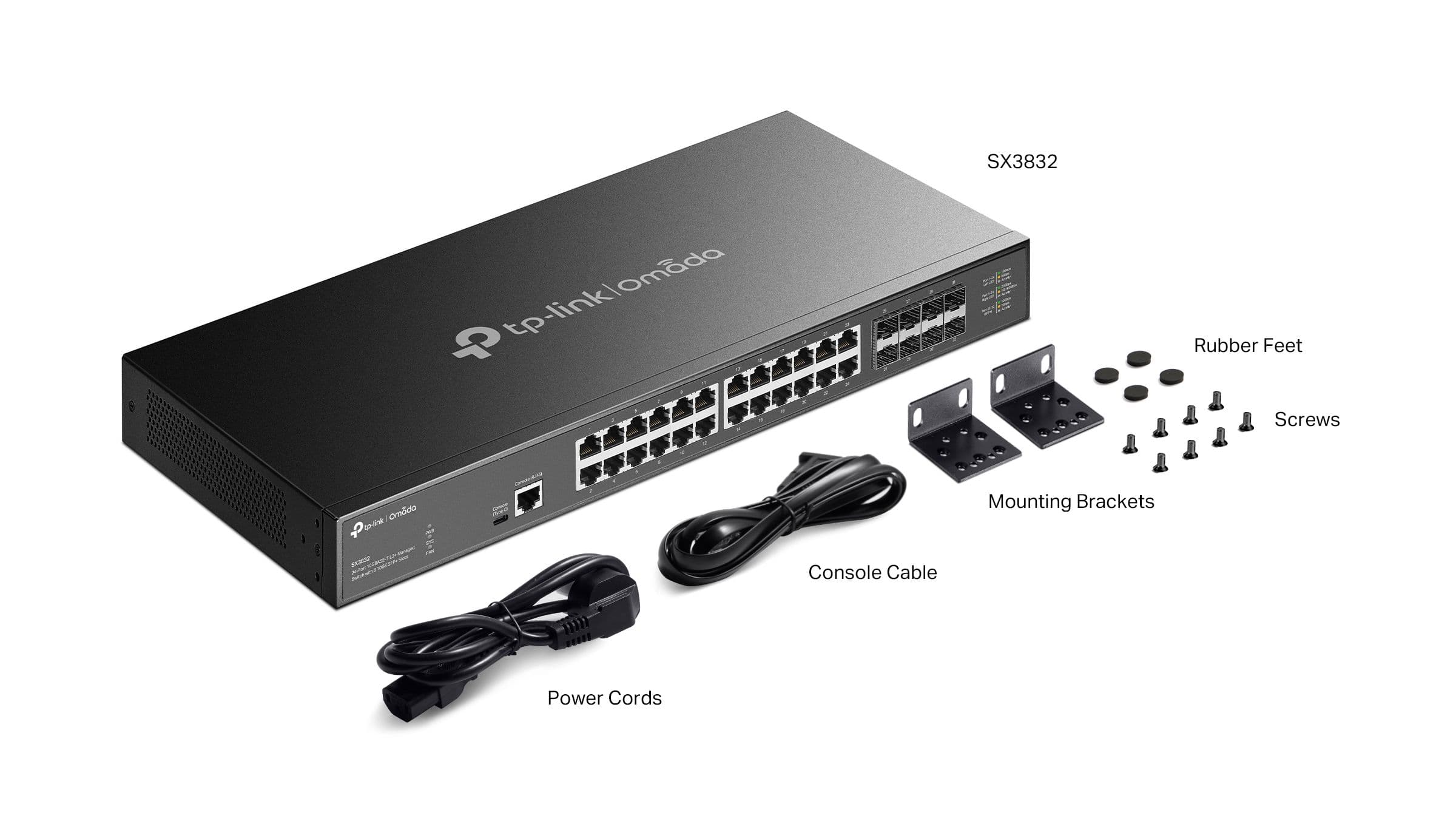

Lieferumfang
• SX3832 Switch • Netzkabel • Konsolenkabel • Kurzanleitung zur Installation • Rack-Montageset • Gummifüße
Funktionen
Software Defined Networking mit Cloud-Zugriff, zentrale Verwaltung über Omada, Zero-Touch Provisioning, statisches Routing, VLAN-Funktionen, ACLs, Sicherheitsfunktionen, IPv6-Unterstützung und Management-Features für professionelle Netzwerke.

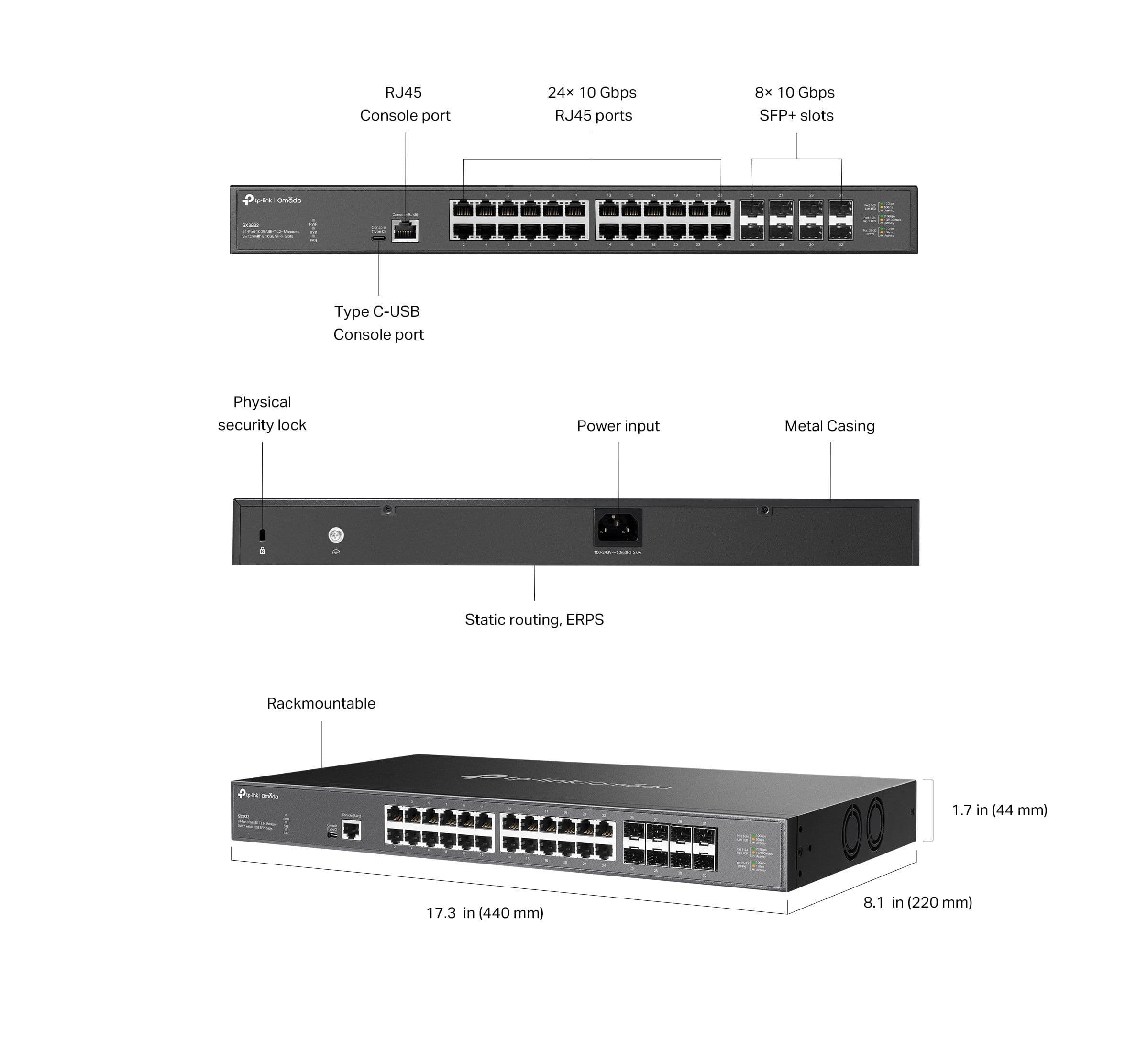

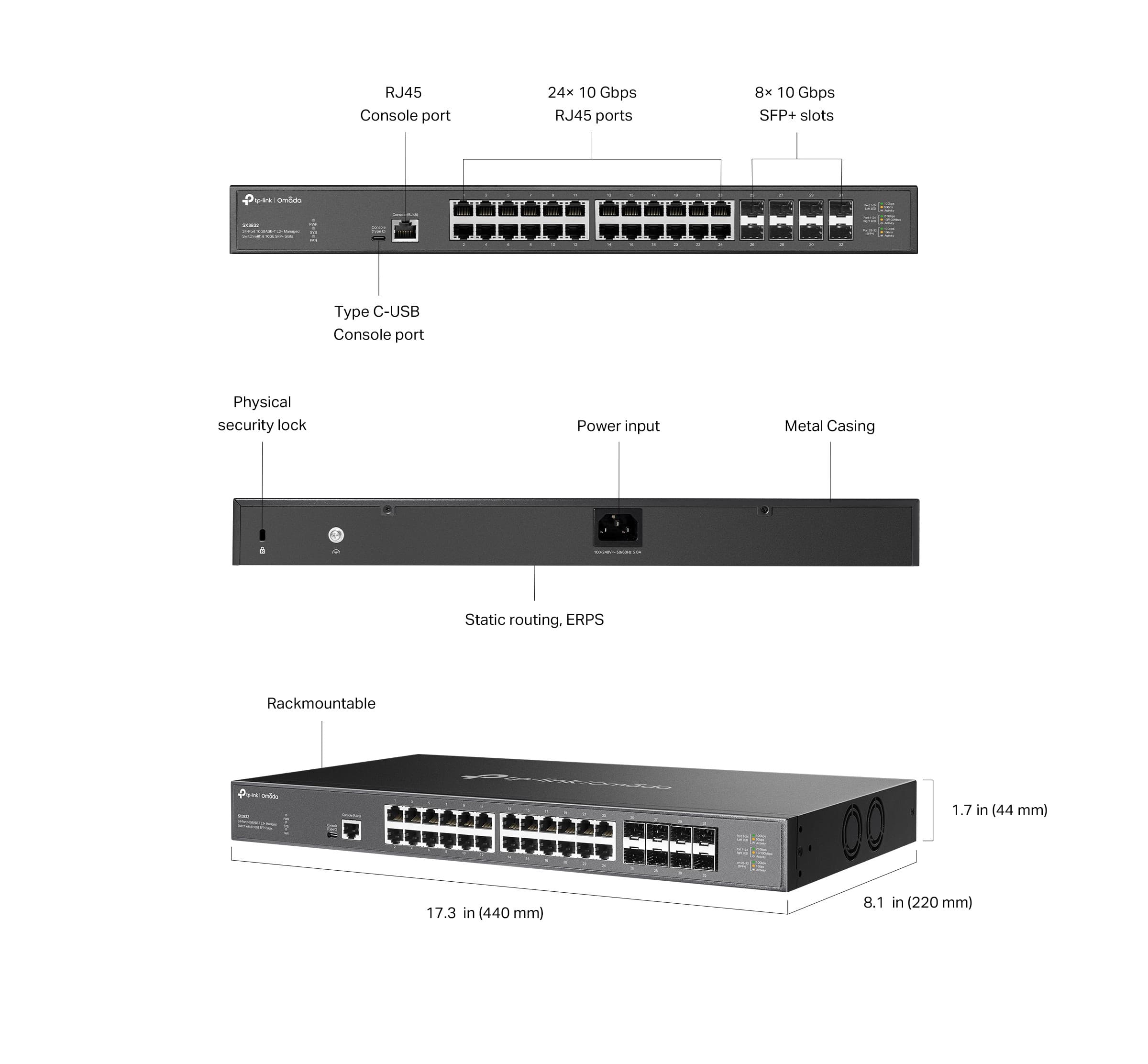

Hardware-Funktionen
| Schnittstelle | 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45-Ports (Auto-Negotiation/Auto MDI/MDIX); 8× 1/10G SFP+-Slots**; 1× RJ45 Console Port; 1× USB Type C Console Port |
| Anzahl Lüfter | 2 |
| Physischer Diebstahlschutz | √ |
| Spannungsversorgung | 100-240 V AC~50/60 Hz |
| Abmessungen (B×T×H) | 440×220×44 mm |
| Montage | Rack Mountable |
| Maximale Leistungsaufnahme | 104.9 W (@110V/60Hz); 106.5 W (@220V/50Hz) |
| Maximale Wärmeabgabe | 357.81 BTU/hr (@110 V/60 Hz); 363.23 BTU/hr (@220 V/50 Hz) |
Performance
| Paketpufferspeicher | 24 Mbit |
| Jumbo-Frames | 9 KB |
| Switchingkapazität | 640 Gbps |
| Paketweiterleitungsrate | 240 Mpps |
| MAC-Adresstabelle | 32 K |
Software-Funktionen
| Quality of Service | 8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| Layer2- und Layer2+-Funktionen | 128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 510 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring |
| Layer2-Multicast | Supports 4,000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile |
| Erweiterte Funktionen | Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Intelligent Network Monitoring†; Abnormal Event Warnings†; Unified Configuration†; Reboot Schedule†; ISP Features: L2PT (Layer 2 Protocol Tunneling), DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM |
| VLAN | VLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN |
| Zugriffskontrollliste | Time-based ACL; MAC ACL; IP ACL; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN |
| Sicherheit | IP-MAC-Port Binding; DHCP Snooping; ARP Inspection; IPv4 Source Guard; IPv6-MAC-Port Binding; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard; DoS Defend; DHCP Filter; Port Security; Storm Control; 802.1X; AAA (including TACACS+); Port Isolation; HTTPS; SSH; IP/Port/MAC-based access control |
| IPv6 | IPv6 Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery; MTU discovery; ICMPv6; TCPv6/UDPv6; DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP |
| MIBs | MIB II; Interface MIB; Ethernet Interface MIB; Bridge MIB; P/Q-Bridge MIB; RMON MIB; RMON2 MIB; Radius Accounting Client MIB; Radius Authentication Client MIB; Remote Ping, Traceroute MIB; TP-Link private MIB |
Verwaltung
| Omada App | Ja. Erfordert Omada Hardware Controller, Omada Cloud-Based Controller oder Omada Software Controller. |
| Zentrale Verwaltung | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
| Cloud-Zugriff | Ja. Erfordert Omada Hardware Controller, Omada Cloud-Based Controller oder Omada Software Controller. |
| Zero-Touch Provisioning | Ja. Erfordert Omada Cloud-Based Controller. |
| Management-Features | Web-GUI; CLI über Konsolenport und Telnet; SNMP v1/v2c/v3; SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; IEEE 802.3az Energy Efficient Ethernet (EEE); Password Recovery; SNTP; System Log |
Sonstiges
| Zertifizierung | CE, FCC, RoHS |
| Verpackungsinhalt | SX3832 Switch; Power Cord; Console Cable; Quick Installation Guide; Rackmount Kit; Rubber Feet |
| Systemanforderungen | Microsoft Windows 98SE, NT, 2000, XP, Vista oder Windows 7/8/10/11, MAC OS, NetWare, UNIX oder Linux |
| Umgebung | Operating Temperature: -5–50 ℃; Storage Temperature: -40–70 ℃; Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing |
