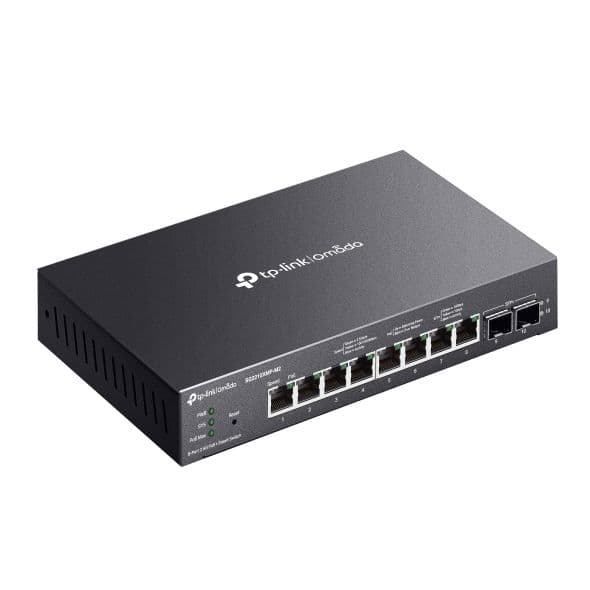

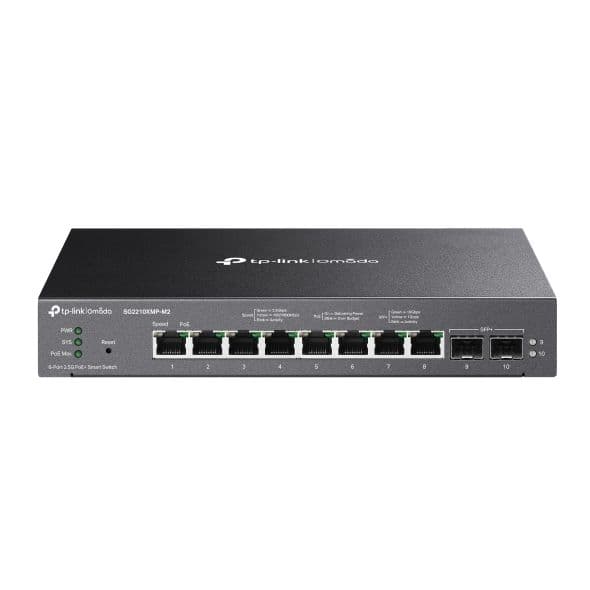

Omada SG2210XMP-M2
Omada 8-Port 2.5GBASE-T und 2-Port 10GE SFP+ Smart Switch mit 8-Port PoE+

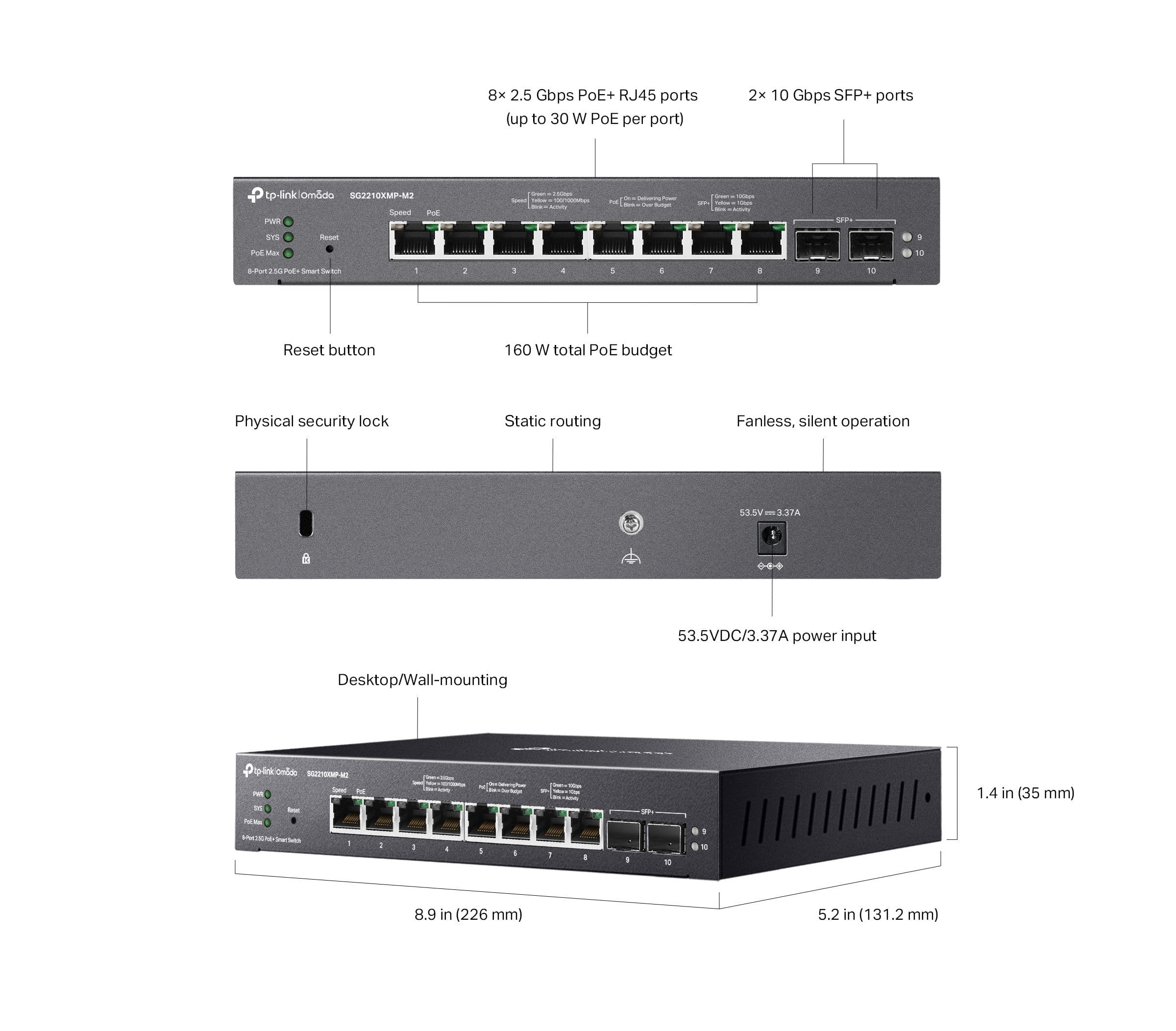

8× 2,5 Gbit/s 802.3at/af-konforme PoE+ Ports
2× 10G SFP+ Slots
160 W Gesamt-PoE Power Budget mit bis zu 30 W PoE Output pro Port
Zentrale Verwaltung über die Cloud per Weboberfläche oder Omada App & dagger
Unterstützt Standalone-Verwaltung
Statisches Routing
Lüfterloses Design für geräuschlosen Betrieb
Desktop-/Wandmontage
Highlights
8× 2,5 Gbit/s RJ45-Ports
2× 10 Gbit/s SFP+-Slots
160 W Gesamt-PoE-Leistungsbudget
Lüfterloses Design für geräuschlosen Betrieb
Zentrale Verwaltung
Omada App
Statisches Routing
Traffic Separation
Wi-Fi 6 und Wi-Fi 7 mit 2,5G PoE+ realisieren
8× 2,5 Gbit/s PoE+ RJ45-Ports, bis zu 30 W pro PoE+-Port, ein Gesamtbudget von 160 W und Kompatibilität mit 802.3af/at für PoE- und Non-PoE-Geräte.

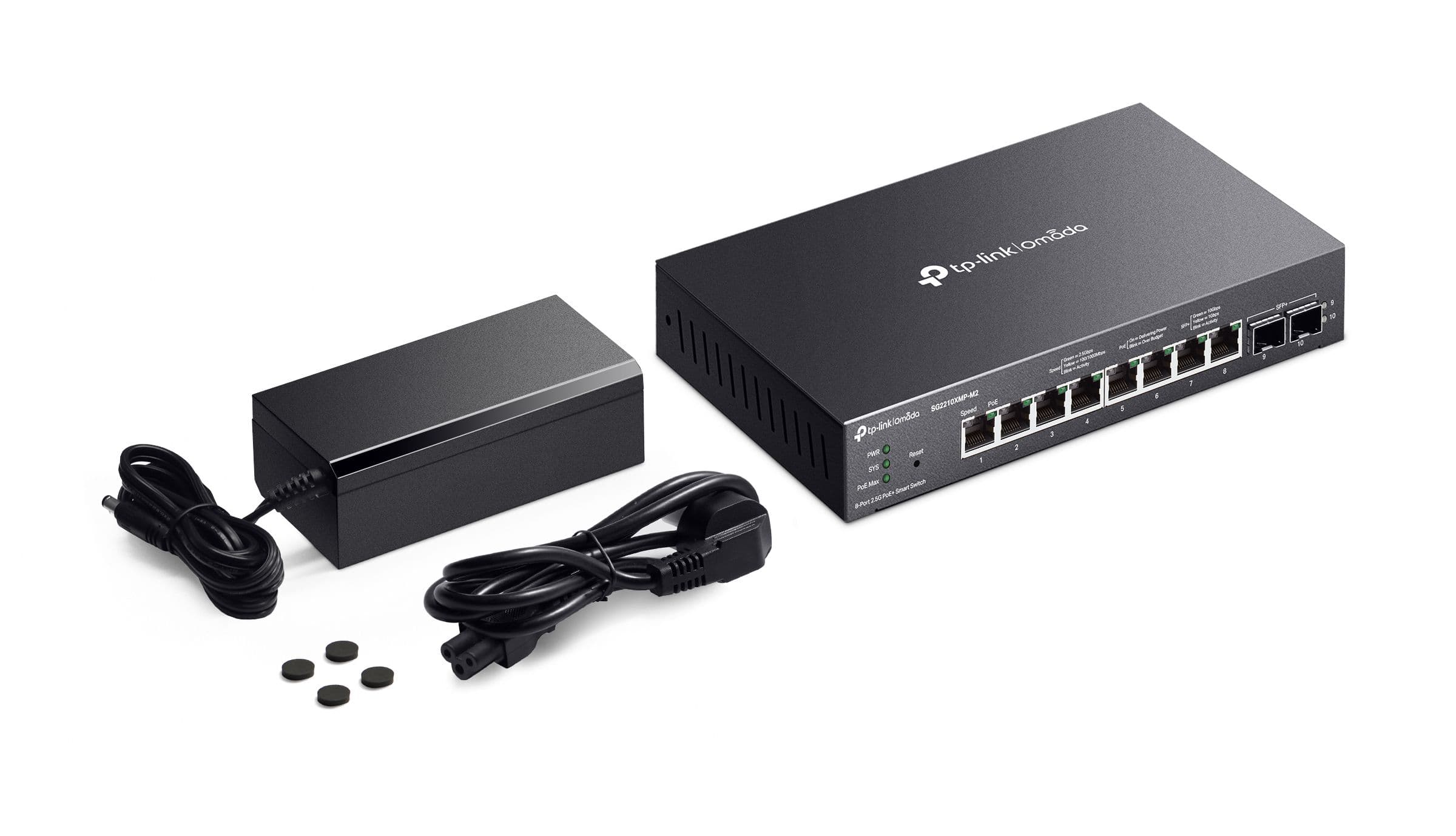

Lieferumfang
• SG2210XHP-M2 Switch • Netzteil • Kurzanleitung zur Installation • Gummifüße
Funktionen
Robustes, kompaktes Design für den professionellen Einsatz im Netzwerkumfeld.
Specifications
| Hardware-Funktionen | Schnittstelle | 8× 100/1000/2500 Mbps RJ45 PoE+ Ports • 2× 10G SFP+ Slots |
| Hardware-Funktionen | Anzahl Lüfter | Fanless |
| Hardware-Funktionen | Physischer Diebstahlschutz | √ |
| Hardware-Funktionen | Spannungsversorgung | 53.5VDC/3.37A Power Adapter |
| Hardware-Funktionen | PoE-Ports | Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 160 W* |
| Hardware-Funktionen | Abmessungen (B*T*H) | 226 × 131 × 35 mm |
| Hardware-Funktionen | Montage | Desktop/Wall-Mounting |
| Hardware-Funktionen | Maximale Leistungsaufnahme | 180.1 W (110V/60Hz) (with 160 W PD connected) |
| Hardware-Funktionen | Maximale Wärmeabgabe | 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected) |
| Performance | Paketpufferspeicher | 12 Mbit |
| Performance | Jumbo-Frames | 9 KB |
| Performance | Switchingkapazität | 80 Gbps |
| Performance | Paketweiterleitungsrate | 59.52 Mpps |
| Performance | MAC-Adresstabelle | 16 K |
| Software-Funktionen | Quality of Service | 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| Software-Funktionen | Layer2- und Layer2+-Funktionen | 32 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| Software-Funktionen | Layer2-Multicast | 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Software-Funktionen | Erweiterte Funktionen | Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| Software-Funktionen | VLAN | VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Software-Funktionen | Zugriffskontrollliste | Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Software-Funktionen | Sicherheit | IP-MAC-Port Binding • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| Software-Funktionen | IPv6 | IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Software-Funktionen | MIBs | MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| Verwaltung | Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Verwaltung | Centralized Management | Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Verwaltung | Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Verwaltung | Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Verwaltung | Management Features | Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| Sonstiges | Zertifizierung | CE, FCC, RoHS |
| Sonstiges | Verpackungsinhalt | SG2210XHP-M2 Switch • Power Adapter • Quick Installation Guide • Rubber Feet |
| Sonstiges | Systemanforderungen | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Sonstiges | Umgebung | Operating Temperature: 0–40 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
