TP-Link Omada · Switches

Omada SG2210P

Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

8 Gigabit 802.3af/at PoE+ Ports und 2 Gigabit SFP Slots

61 W Gesamt-PoE-Budget mit bis zu 30 W PoE-Ausgangsleistung pro Port

Zentralisierte Cloud-Verwaltung über das Internet oder die Omada-App&dagger

Standalone-Verwaltung über Web, CLI, SNMP und RMON

Statisches Routing hilft bei der Weiterleitung des internen Datenverkehrs für mehr Effizienz

VLAN, ACL, QoS und IGMP-Snooping

Lüfterloses Design für geräuschlosen Betrieb

Robustes Metallgehäuse und Design für Tisch- oder Wandmontage

Wichtige Highlights

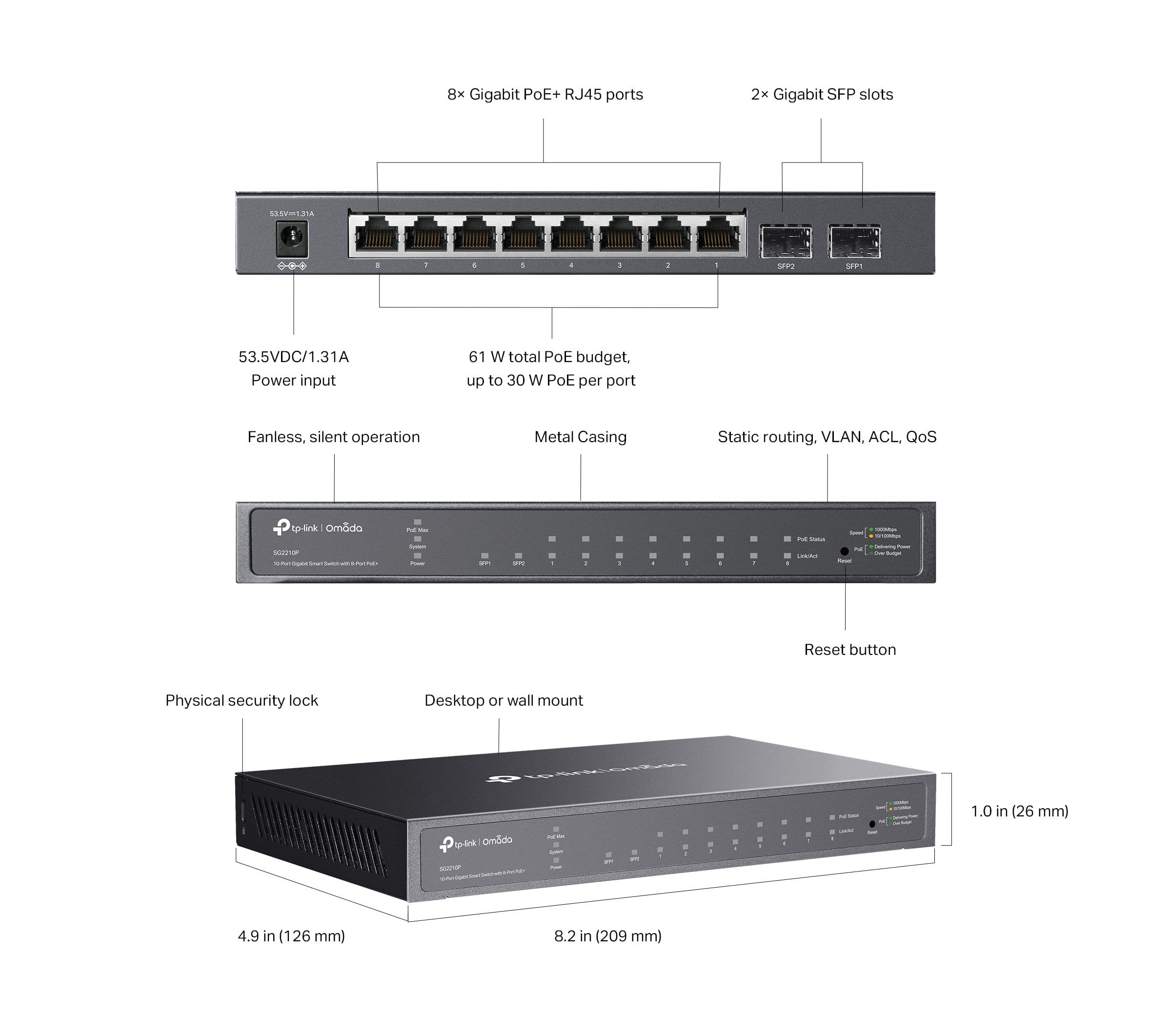

8× Gigabit-PoE+-Ports und 2× Gigabit-SFP-Slots

61 W Gesamt-PoE-Budget

Lüfterloses Design für geräuschlosen Betrieb

Zero-Touch Provisioning

Zentralisierte Verwaltung und Omada App

Statisches Routing

Traffic Separation

Software Defined Networking (SDN) mit Cloud-Zugriff

Verwalten Sie Ihre Access Points, Switches und Gateways an mehreren Standorten über eine einzige Schnittstelle.

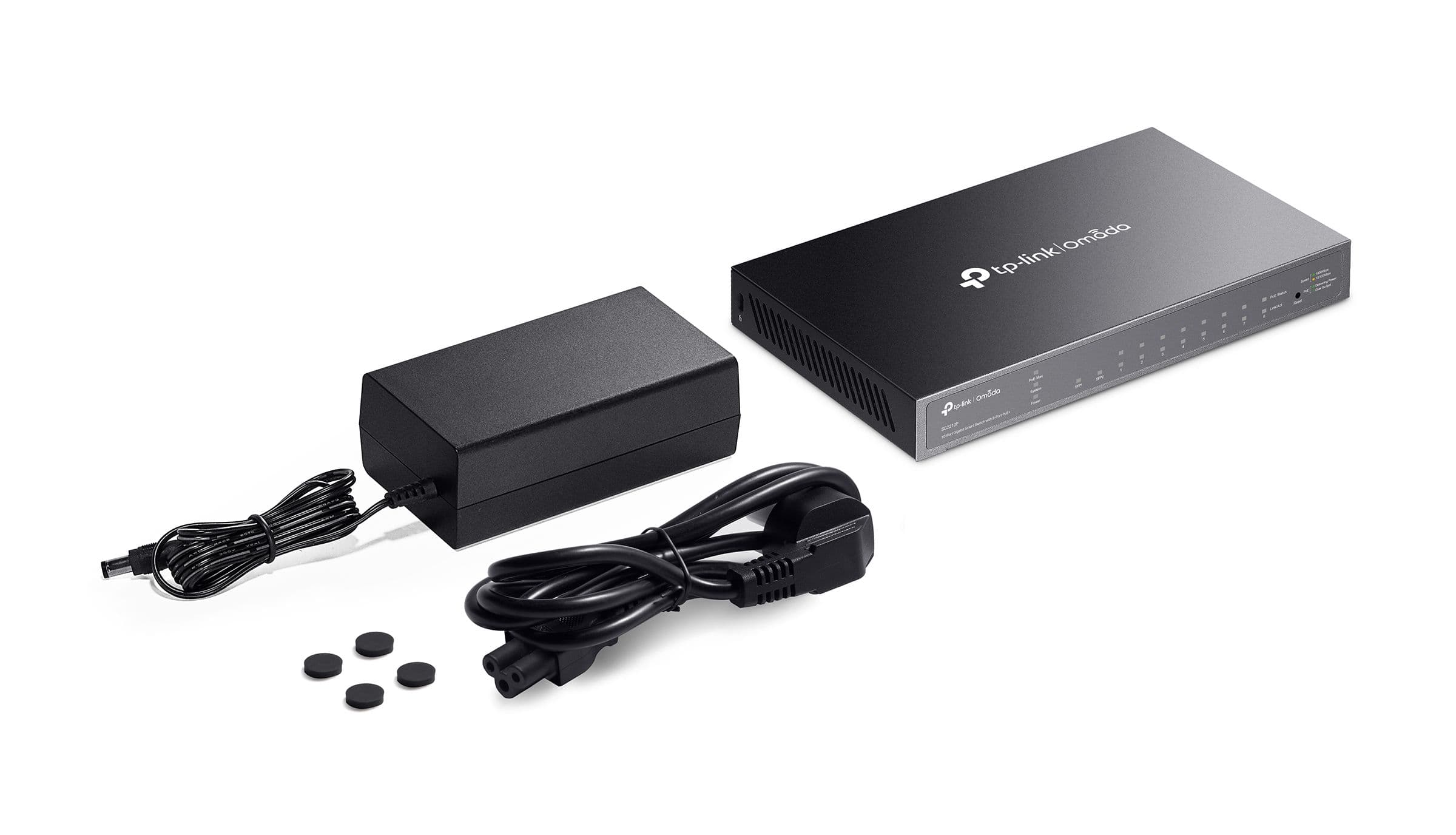

Lieferumfang

Enthält SG2210P, Netzteil, Installationsanleitung und Gummifüße.

Merkmale erstellen

Omada SDN mit Cloud-Zugriff ermöglicht die zentrale Verwaltung, Zero-Touch Provisioning und flexible Einsatzszenarien für Überwachung, Telefonie, Wi‑Fi-Abdeckung und kabelgebundene Verbindungen.

Spezifikationen


Hardware-Funktionen	Schnittstelle: 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX); 2× 100/1000 Mbps SFP Slots \| Anzahl Lüfter: Fanless \| Physischer Diebstahlschutz: √ \| Spannungsversorgung: External Power Adapter (Output: 53.5VDC/1.31A) \| PoE-Ports: Standard 802.3af/at compliant; PoE Ports: 8 Ports; Power Supply: 61 W* \| Abmessungen (B×T×H): 8.2×4.9×1.0 in (209×126×26 mm) \| Montage: Desktop / Wall-Mounting \| Maximale Leistungsaufnahme: 77.8 W (110 V/60 Hz) (with 61 W PD connected) \| Maximale Wärmeabgabe: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
Performance	Switchingkapazität: 20 Gbps \| Paketweiterleitungsrate: 14.88 Mpps \| MAC-Adresstabelle: 8K \| Paketpufferspeicher: 4.1 Mbit \| Jumbo-Frames: 9 KB
Software-Funktionen	Quality of Service: 802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode; SP (Strict Priority); WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port/Flow based Rating Limit; Smoother Performance; Storm Control; Multiple Control Modes(kbps/ratio); Broadcast/Multicast/Unknown-Unicast Control \| Layer2- und Layer2+-Funktionen: 32 IP Interfaces; Support IPv4/IPv6 Interface; Static Routing: 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay; DHCP Interface Relay; DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring; Device Link Detect Protocol (DLDP); 802.1ab LLDP/ LLDP-MED \| Layer2-Multicast: 511 IPv4, IPv6 shared multicast groups; IGMP Snooping; Multicast VLAN Registration (MVR); Multicast Filtering; Limited IP Multicast (256 profiles and 16 entries per profile) \| Erweiterte Funktionen: Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Intelligent Network Monitoring†; Abnormal Event Warnings†; Unified Configuration†; Reboot Schedule† \| VLAN: VLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN \| Zugriffskontrollliste: Support up to 230 entries; Time-based ACL; MAC ACL; IP ACL; IPv6 ACL; Combined ACL; Rule Operation: Permit/Deny; Policy Action; Mirroring; Redirect; Rate Limit; QoS Remark; ACL Rules Binding; Port Binding; VLAN Binding \| Sicherheit: IP-MAC-Port Binding; AAA; 802.1X; Port-based authentication; MAC (Host) based authentication; Authentication Method includes PAP/EAP-MD5; MAB; Guest VLAN; Support Radius authentication and accountability; IP/IPv6-MAC Binding; 512 Binding Entries; DHCP Snooping; DHCPv6 Snooping; ARP Inspection; ND Detection; IP Source Guard; 253 Entries; Source IP+Source MAC; IPv6 Source Guard; 183 Entries; Source IPv6 Address+Source MAC; DoS Defend; Static/Dynamic/Permanent Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio control mode; Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control \| IPv6: IPv6 Static Routing and ACL; IPv6 Dual IPv4/IPv6; IPv6 Interface; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet(v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP \| MIBs: MIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9)
Verwaltung	Omada App: Yes; Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller \| Centralized Management: Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller \| Cloud Access: Yes; Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller \| Zero-Touch Provisioning: Yes; Requiring the use of Omada Cloud-Based Controller \| Management Features: Web-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log
Sonstiges	Zertifizierung: CE, FCC, RoHS \| Verpackungsinhalt: SG2210P; Power Adapter; Installation Guide; Rubber Feet \| Systemanforderungen: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux \| Umgebung: Operating Temperature 0℃~40℃; Storage Temperature -40℃~70℃; Operating Humidity 10%~90% non-condensing; Storage Humidity 5%~90% non-condensing
