Omada SG2005P-PD
Omada 5-Port-Gigabit-Smart-Switch mit 1 PoE++-Eingang und 4 PoE+-Ausgängen

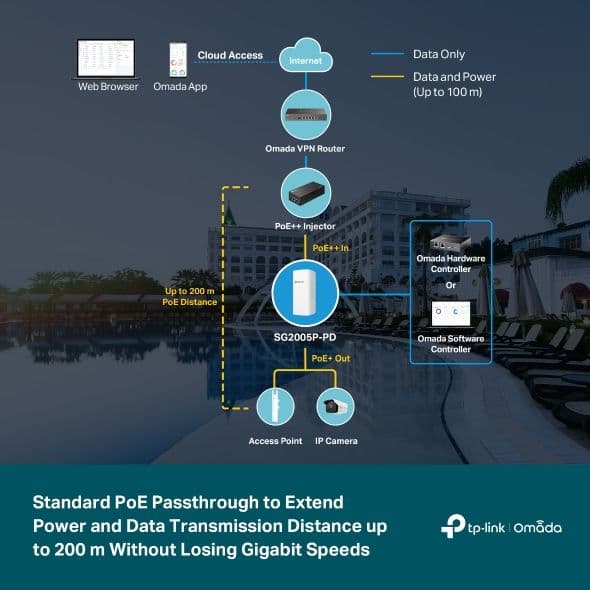

Bis zu 200 m PoE-Reichweite: Standard-PoE-Passthrough verdoppelt die Übertragungsdistanz von der PoE-Quelle zum Endgerät von 100 m (328 ft) auf 200 m (656 ft), ohne Gigabit-Geschwindigkeit zu verlieren – ideal für Überwachungskameras und Access Points mit großer Reichweite.

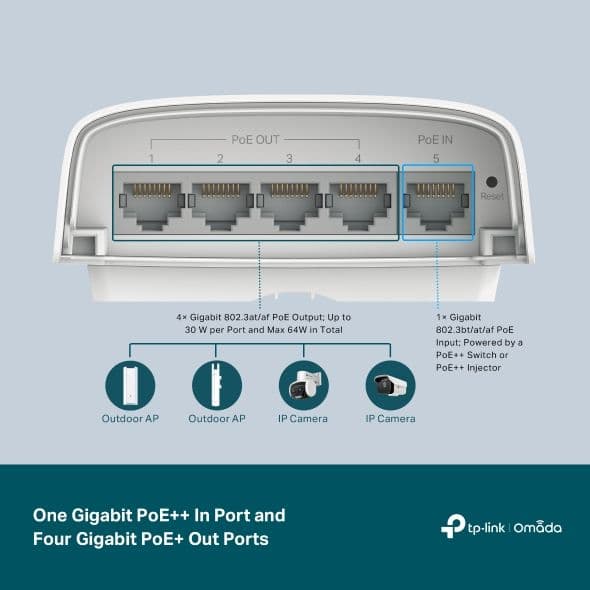

1× Gigabit-PoE++-Eingang und 4× PoE+-Ausgänge: Unterstützt bis zu 64 W / 44 W / 19 W / 6 W PoE-Budget-Ausgang, wenn gespeist durch 802.3bt Typ 4 (90 W), 802.3bt Typ 3 (60 W), 802.3at bzw. 802.3af PoE.
Wetterfest für den Außenbereich: IP55 wasserdicht, staubdicht und UV-beständig. Betriebstemperaturen von -40 bis 60 °C und 4 kV Blitzschutz sorgen für einen stabilen Betrieb auch unter rauen Außenbedingungen.
Einfache Installation: Kann mit den mitgelieferten Montagesets flexibel an Wand oder Mast befestigt werden.
Zentrales Cloud-Management: Integriert in Omada SDN für Cloud-Zugriff, Fernverwaltung und Multi-Site-Management.
Mehrwertfunktionen für optimale Nutzererfahrung: Statisches Routing, Access Control List (ACL), QoS und VLAN.
Wichtige Vorteile
Versorgt Geräte über PoE++/PoE+/PoE.
Bis zu 64 W PoE-Budget mit 4 PoE+-Ausgangsports.
PoE-Reichweite bis zu 200 m ohne Gigabit-Verlust.
Volle Gigabit-Ports für zuverlässige Datenübertragung.
Wetterfestes und UV-beständiges Gehäuse.
Zentrale und Multi-Site-Verwaltung mit Omada.
Unterstützt Static Routing.
PoE-betriebener Switch für vereinfachte Outdoor-Netzwerke
Omada 5-Port Gigabit Smart Switch mit 1-Port PoE++ In und 4-Port PoE+ Out. Zentralisierte Verwaltung für den Einsatz im Außenbereich.
Lieferumfang
• SG2005P-PD • Montagezubehör • Installationsanleitung
Erweiterte Funktionen
Static Routing für effizientere interne Datenflüsse.
Access Control List (ACL) für definierte Netzwerkregeln.
QoS priorisiert latenzkritische Sprach- und Videoanwendungen.
VLAN für sichere und flexible Netzwerksegmentierung.
Software Defined Networking mit Cloud Access
Omada SDN integriert Access Points, Switches und Gateways für eine vollständig zentralisierte Cloud-Verwaltung über eine einzige Oberfläche.
Hardware-Funktionen
| Standards und Protokolle | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Schnittstelle | • 1× 10/100/1000 Mbps RJ45 PoE-In-Port (kompatibel mit 802.3af/at/bt) • 4× 10/100/1000 Mbps RJ45 PoE-Out-Ports (kompatibel mit 802.3af/at PoE) |
| Kabel | • 10BASE-T: UTP-Kabel der Kategorie 3, 4 oder 5 (maximal 100 m) • 100BASE-TX/1000BASE-T: UTP-Kabel der Kategorie 5, 5e oder höher (maximal 100 m) |
| Anzahl Lüfter | Lüfterlos |
| Spannungsversorgung | Stromversorgung über 802.3af/at/bt PoE-Quelle beziehen |
| PoE-Ports | • PoE-In-Port: Port 5, kompatibel mit 802.3af/at/bt • PoE-Out-Ports: Ports 1–4, kompatibel mit 802.3af/at PoE • PoE-Leistungsbudget: * 64 W bei Stromversorgung über 802.3bt Typ 4 (90 W) * 44 W bei Stromversorgung über 802.3bt Typ 3 (60 W) * 19 W bei Stromversorgung über 802.3at * 6 W bei Stromversorgung über 802.3af |
| Abmessungen (B*T*H) | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| Maximale Leistungsaufnahme | 71,5 W bei Stromversorgung über 802.3bt Typ 4 (90 W) |
| Maximale Wärmeabgabe | 243,99 BTU/h bei Stromversorgung über 802.3bt Typ 4 (90 W) |
Leistung
| Switchingkapazität | 10 Gbps |
| Paketweiterleitungsrate | 7.44 Mpps |
| MAC-Adresstabelle | 8k |
| Paketpufferspeicher | 4.1 Mbit |
| Jumbo-Frames | 9 KB |
Software-Funktionen
| Quality of Service | • 802.1p CoS/DSCP-Priorität • 8 Prioritätswarteschlangen • Prioritätsplanungsmodus - SP (Strict Priority) - WRR (Weighted Round Robin) • Konfiguration der Warteschlangengewichtung • Bandbreitenkontrolle - Port-/flussbasierte Ratenbegrenzung • Verbesserte Performance • Storm Control - Mehrere Steuerungsmodi (kbit/s/Verhältnis) - Broadcast-/Multicast-/Unknown-Unicast-Kontrolle |
| Layer2- und Layer2+-Funktionen | 32 IP Interfaces- Support IPv4/IPv6 Interface• Static Routing- 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation- Static link aggregation- 802.3ad LACP- Up to 8 aggregation groups and up to 8 ports per group• Spanning Tree Protocol- 802.1D STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter/Protect, Root Protect• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Flow-Based- Ingress/Egress/Both• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED |
| Layer2-Multicast | 511 IPv4, IPv6 shared multicast groups• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- Static Group Config• Multicast VLAN Registration (MVR)• Multicast Filtering• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config• Limited IP Multicast (256 profiles and 16 entries per profile) |
| Erweiterte Funktionen | Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule |
| VLAN | VLAN Group- Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN |
| Zugriffskontrollliste | Support up to 230 entries• Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- Holiday• Time-based ACL• MAC ACL- Source MAC- Destination MAC- VLAN ID- User Priority- Ether Type• IP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP TOS• IPv6 ACL• Combined ACL• Rule Operation- Permit/Deny• Policy Action- Mirror- Rate Limit- Redirect- QoS Remark• ACL Rules Binding- Port Binding- VLAN Binding• Actions for flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS Remark |
| Sicherheit | AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| IPv6 | IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications- DHCPv6 Client- Ping6- Tracert6- Telnet (v6)- IPv6 SNMP- IPv6 SSH- IPv6 SSL- Http/Https- IPv6 TFTP |
| MIBs | MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
Verwaltung
| Omada App | Ja, über: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller • Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Ja, über: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Zero-Touch Provisioning | Ja. Erfordert die Verwendung des Omada Cloud-Based Controllers. |
| Management Features | Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log |
Sonstiges
| Zertifizierung | CE, FCC, RoHS |
| Verpackungsinhalt | SG2005P-PD• Mounting Kits• Installation Guide |
| Systemanforderungen | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Umgebung | Operating Temperature: -40 to 60 °C (-40 to 140 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
