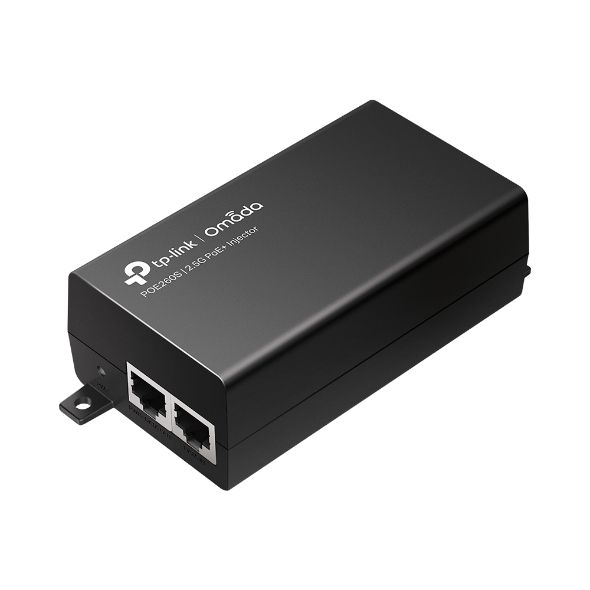

TP-Link Omada
POE260S
2.5G PoE+ Injector
2× 2,5 Gbps Ports sorgen für eine schnellere Übertragung
Entspricht den IEEE802.3af/at-Standards, liefert bis zu 30 W
Reduziert die Infrastrukturkosten durch gleichzeitige Übertragung von Daten und Strom über ein Ethernet-Kabel

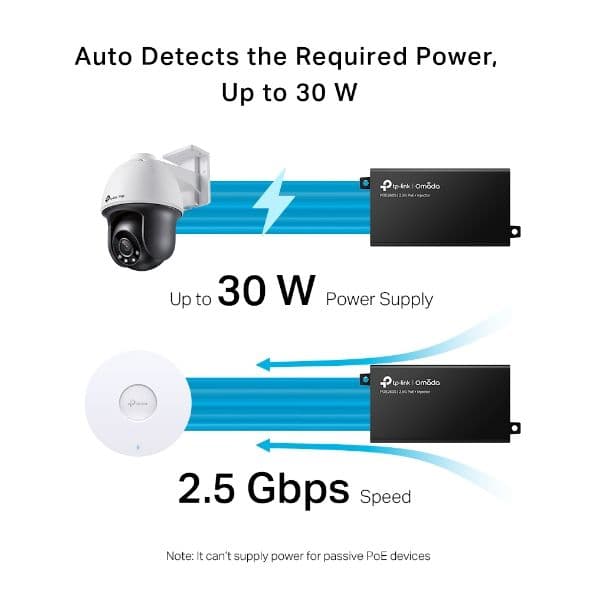

Ermittelt und liefert automatisch die exakte Leistung, die das Gerät benötigt
Wandmontage und Desktop-Design für die meisten Installationsszenarien geeignet
Plug-and-Play-Installation, keine Konfiguration erforderlich
Integrierte Stromversorgung
Funktion dieses Produkts

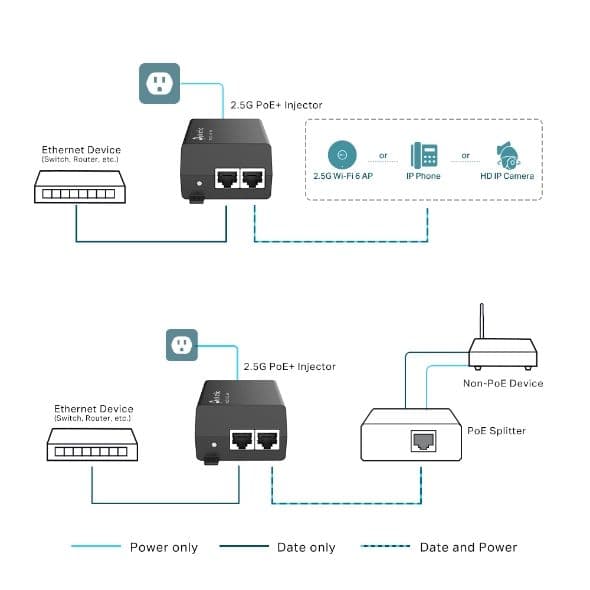

Der 2.5G PoE+ Injector POE260S (TL-POE260S) entspricht vollständig den IEEE 802.3af/at-Standards und kann mit allen IEEE 802.3af/at PoE-kompatiblen PDs (Powered Devices) oder anderen gleichwertigen Produkten zusammenarbeiten, um Ihr Netzwerk an Orte zu erweitern, an denen keine Stromleitung oder Steckdose vorhanden ist, an denen Sie Geräte wie einen 2.5G-AP, eine HD-IP-Kamera oder ein IP-Telefon installieren möchten.
Specifications
| Standards und Protokolle | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |

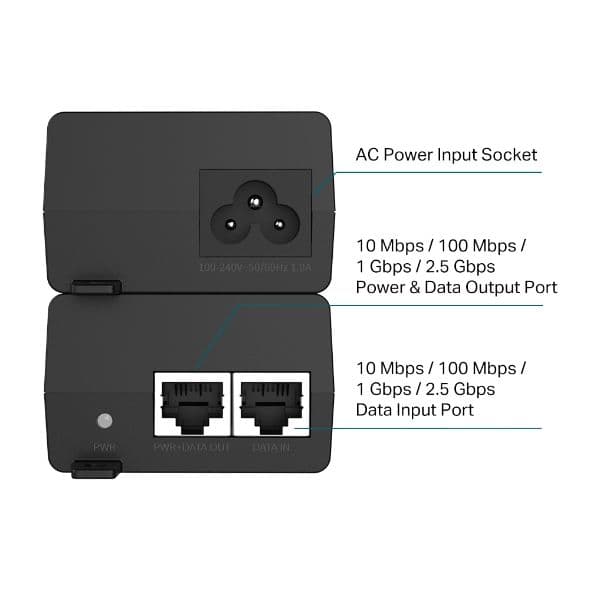

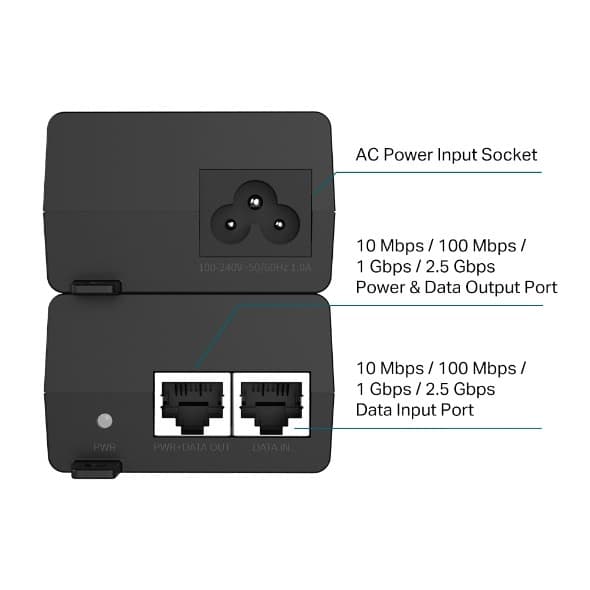

| Schnittstelle | • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket |
| Kabel | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) |
| Energieverbrauch | • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W) |
| Grundfunktion | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | Power / PoE |
| Abmessungen (B*T*H) | 4.9×2.3×1.4 in (125×59.4×36.8 mm) |
| Zertifizierung | FCC, CE, RoHS |
| Verpackungsinhalt | • POE260S • Installation Guide • Power Cord • Wall Mounting Kits |
| Umgebung | • Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
