TP-Link Omada

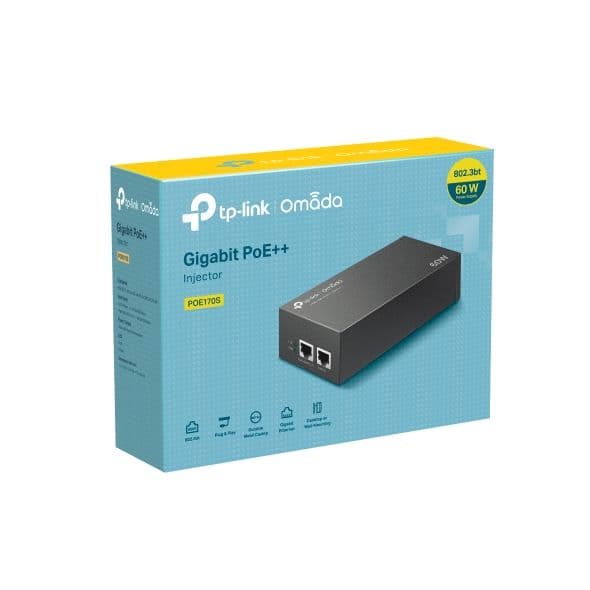

Omada PoE++ Injector POE170S
Omada PoE++ Injector
Zwei Gigabit-Ports
Entspricht den IEEE802.3af/at/bt (Typ 3) Standards, liefert bis zu 60 W
Überträgt Daten und Strom über ein Ethernet-Kabel an PoE-Geräte
Erkennt und liefert automatisch genau die benötigte Leistung für das jeweilige Gerät
Wandmontage- und Desktop-Design
Plug & Play-Installation
Robustes Metallgehäuse
Was dieses Produkt kann
Der Omada PoE++ Injector POE170S erfüllt vollständig die Standards IEEE 802.3af/at/bt (Typ 3) und liefert bis zu 60 W Leistung. Er erweitert Ihr Netzwerk einfach an Orte ohne Stromleitungen oder Steckdosen und eignet sich ideal für den Anschluss von PTZ-IP-Kameras, Access Points und LEDs.
Spezifikationen
| Standards und Protokolle | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| Schnittstelle | 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket |
| Kabel | 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m) |
| Energieverbrauch | Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W) |
| Grundfunktion | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | Power • PoE |
| Abmessungen (B×T×H) | 6.1×2.8×1.7 in (155×70×42 mm) |
| Material | Metal Casing |
| Zertifizierung | FCC, CE, RoHS |
| Verpackungsinhalt | Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable |
| Umgebung | Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
